Practical plug-ins for AutoCAD Plant 3D

Plant 3D.
Made easier.

Work faster, simplify repetitive tasks and save time in AutoCAD Plant 3D. CD Design tools help you spend less time on manual steps and more time on your design.

Explore the tools

Built around the way piping designers work.

Built by Cemal DurPiping Design Engineer
IN PREVIEW
Product preview
Nozzle labellingCD Nozzle Tags
Watch demo
Built for AutoCAD Plant 3DFor piping design workflowsIndependent software by CD Design

The collection

Less repetitive work.
More useful tools.

Each tool takes care of a specific task.
Choose what fits your workflow.

Product preview
01 / Nozzle labellingv1.1.3

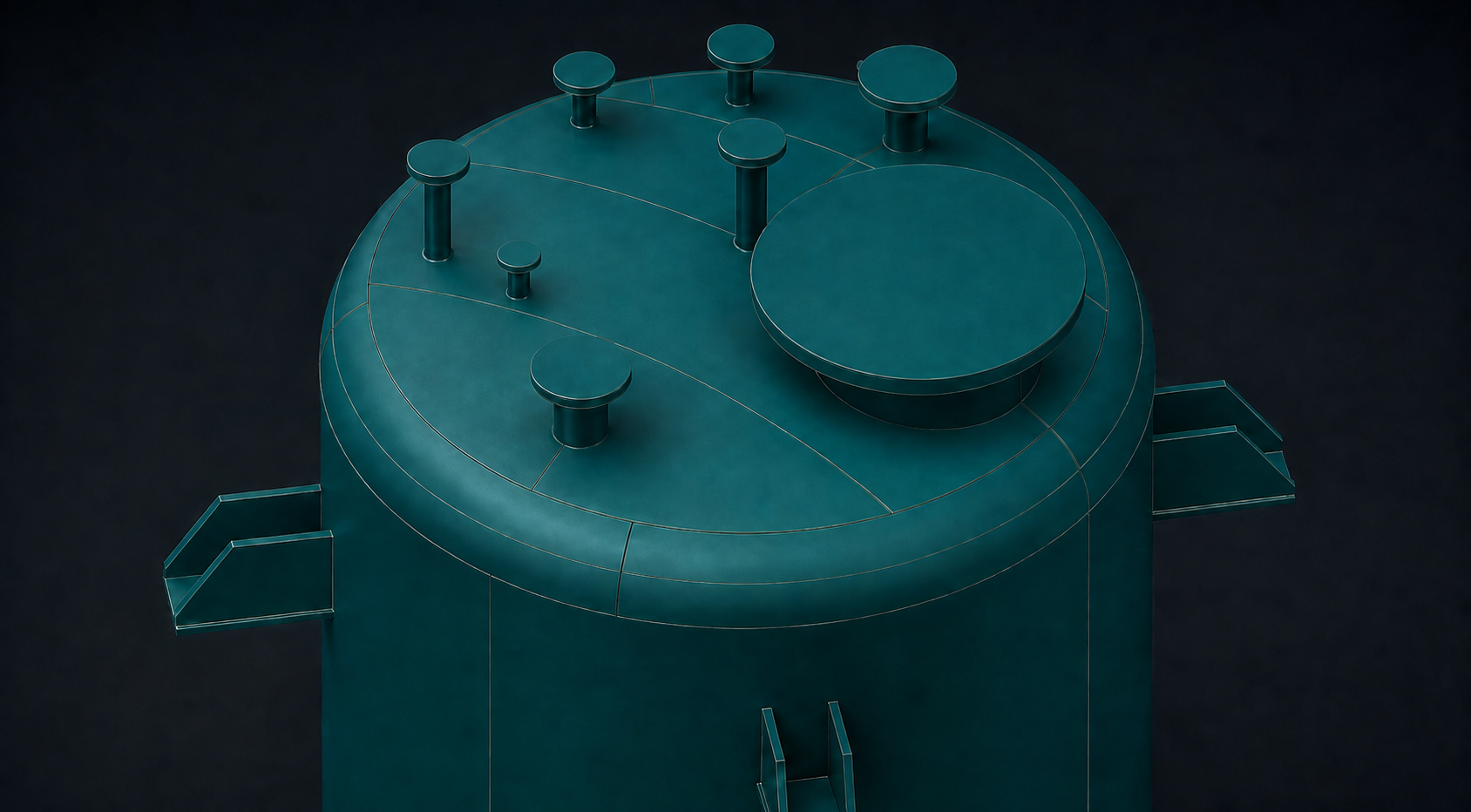

CD Nozzle Tags

Keep nozzle tags and nominal sizes visible in the model. Create or refresh the markers with one command.

Explore Nozzle Tags Watch demo
Product preview
02 / Connection reviewv1.0.3

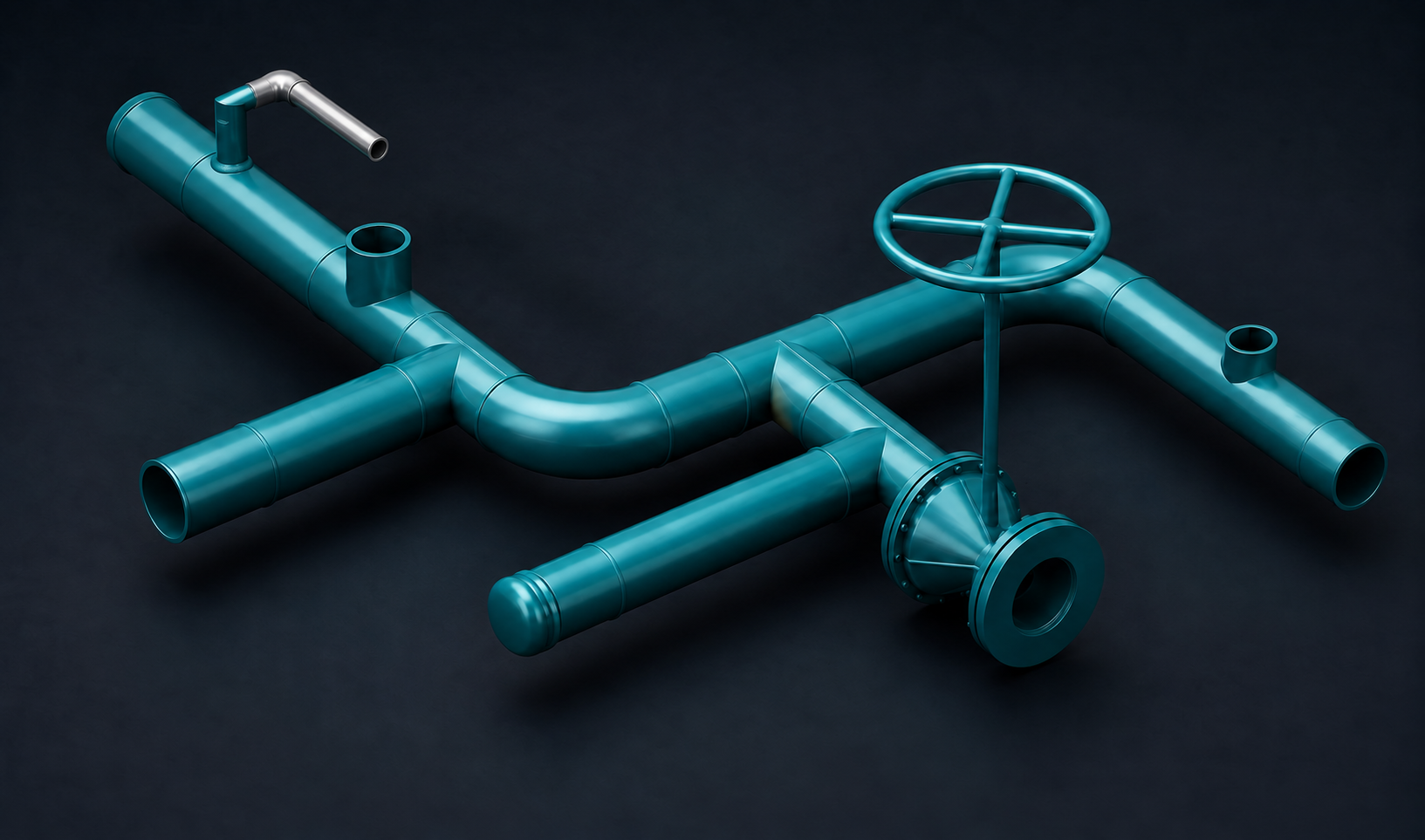

CD Open Ends

Find unconnected pipe and fitting ports. Put a visible marker at each location and clear the markers when the review is done.

Explore Open Ends Watch demo
Product preview
04 / Flow directionv1.0.0

CD Flow Arrows

Place a single Flow Arrow in Plant 3D and propagate 3D wrap-around flow direction markers across the entire pipeline and branches for Navisworks review.

Explore Flow Arrows Watch demo

Behind CD Design

Built from experience.
Made for everyday work.

I’m Cemal, a piping design engineer. I build CD Design tools around the repetitive work I encounter in Plant 3D: simplifying manual steps and making everyday tasks easier.

The aim is simple: practical tools that help you work faster and leave more time for design. If there is a task you would like to make easier, I’d like to hear about it.

I’m always excited to turn good ideas into practical tools. Drop me a note with your thoughts.

Cemal DurPiping Design Engineer · CD Design

Need a hand getting started?

Installation, activation and answers to common questions.

Open support
